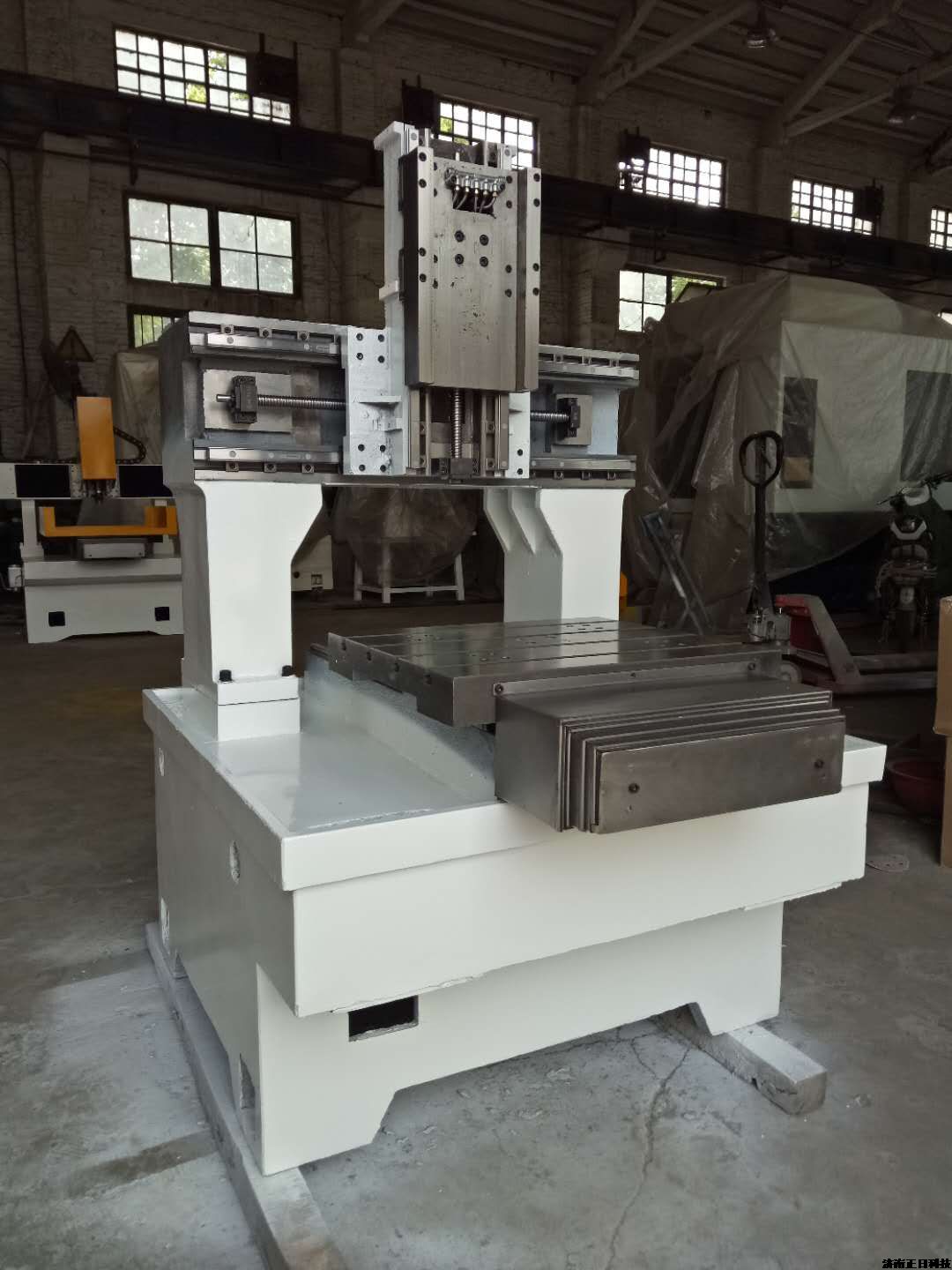

Machine Tool Body

CNC engraving machines for Machine Tool Body

DescriptionParameter

X,Y,Z Working Area400*380*240mm

X,Y,Z Traveling Positioning Accuracy±0.02/300mm

X,Y,Z repositioning Positioning Accuracy±0.01mm

Lathe StructureCast ron

X, Y StructureShaft Linear Bearings and Ball Screw

Z StructureBall Screw

Max. Consume power2.2kw

Max. Speed0-8,000mm/min

Max. Working Speed4-6m/min

Spindle Power Motor800w water-coolling spindle

Spindle Speed0-24000rpm/min

Drive Modeervo motor

Working VoltageAC220V, 50/60Hz

CommandG code, *uoo, *mmg, *plt

Operating SystemDSP System

InterfaceUSB

Flash Memory128M

X,Y Working Delicacy<0.01mm

SoftwareType3, Ucancam, Artcam

Running circumstanceTemperature: 0~45°C

Packing Size1200*1100*2000 mm

Net Weight1100KG
