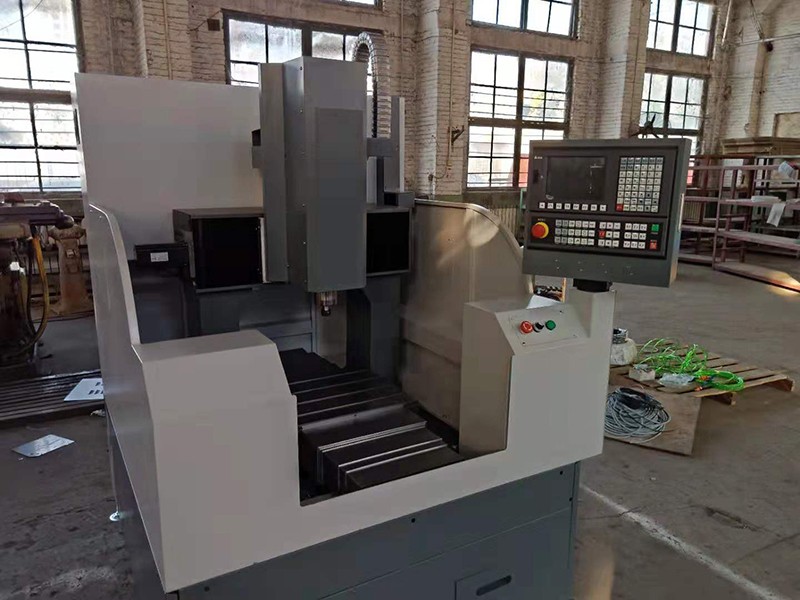

CNC engraving and milling machine

  • 产品说明

CNC engraving and milling machine

Description Parameter

X,Y,Z Working Area 400*400*250mm

X,Y,Z Traveling Positioning Accuracy ±0.02/300mm

X,Y,Z repositioning Positioning Accuracy ±0.01mm

Lathe Structure Cast ron

X, Y Structure Shaft Linear Bearings and Ball Screw

Z Structure Ball Screw

Max. Consume power 2.2kw

Max. Speed 0-8,000mm/min

Max. Working Speed 4-6m/min

Spindle Power Motor 800w water-coolling spindle

Spindle Speed 0-24000rpm/min

Drive Mode ervo motor

Working Voltage AC220V, 50/60Hz

Command G code, *uoo, *mmg, *plt

Operating System DSP System

Interface USB

Flash Memory 128M

X,Y Working Delicacy <0.01mm

Software Type3, Ucancam, Artcam

Running circumstance Temperature: 0~45°C

Packing Size 1200*1100*2000 mm

Net Weight 1300KG
